Kriega US drypack mounting kit for Aprilia Tuono V4 Factory / RR & RSV4 RF / RR
The US drypack mounting kit is specially designed for mounting US drypacks. The high-quality and very hard-wearing belt loops can be conveniently attached under the seat using existing mounting points and provide a secure hold. Once fitted, you have solid connection points for every Kriega US Drypack or US Drypack Combo.
Scope of delivery:
- 1 x T-shaped Velcro fastener
- 2 x screw loops - 95 mm - 6 mm hole
- 4 x M6 washers
Installation:

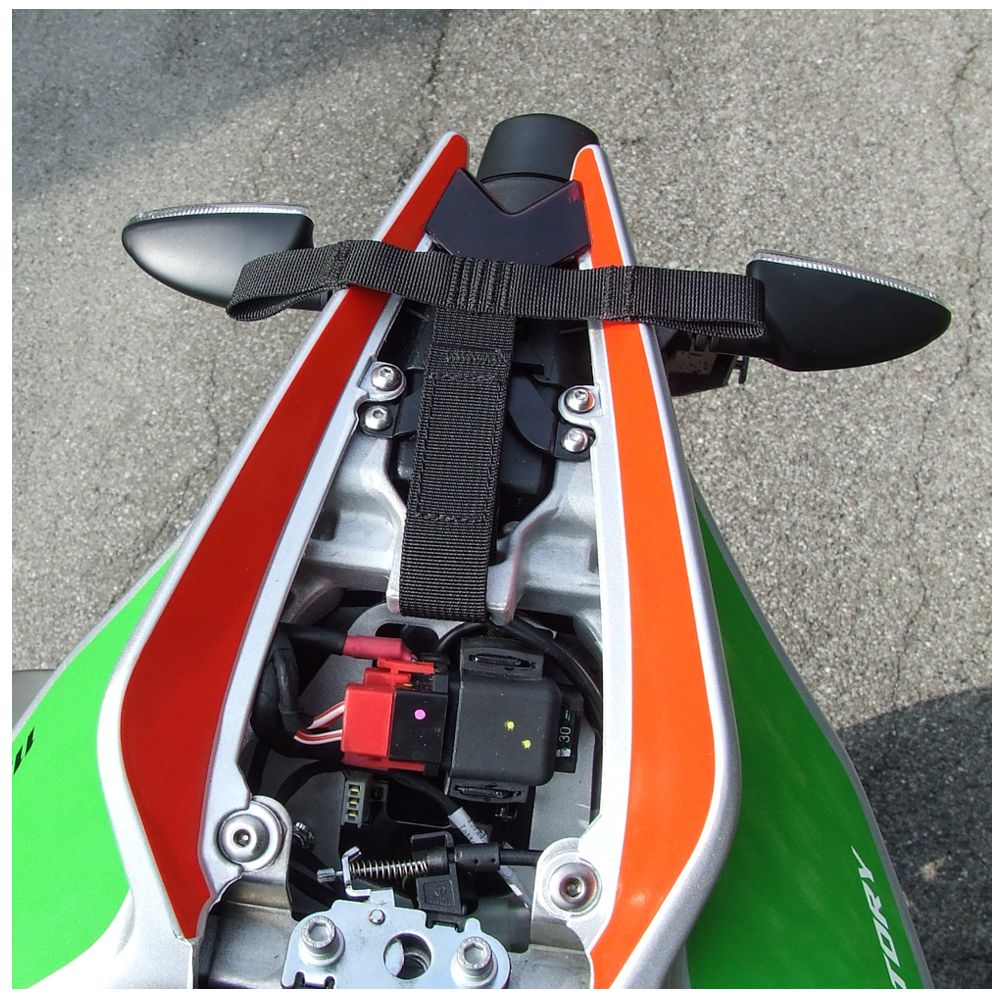

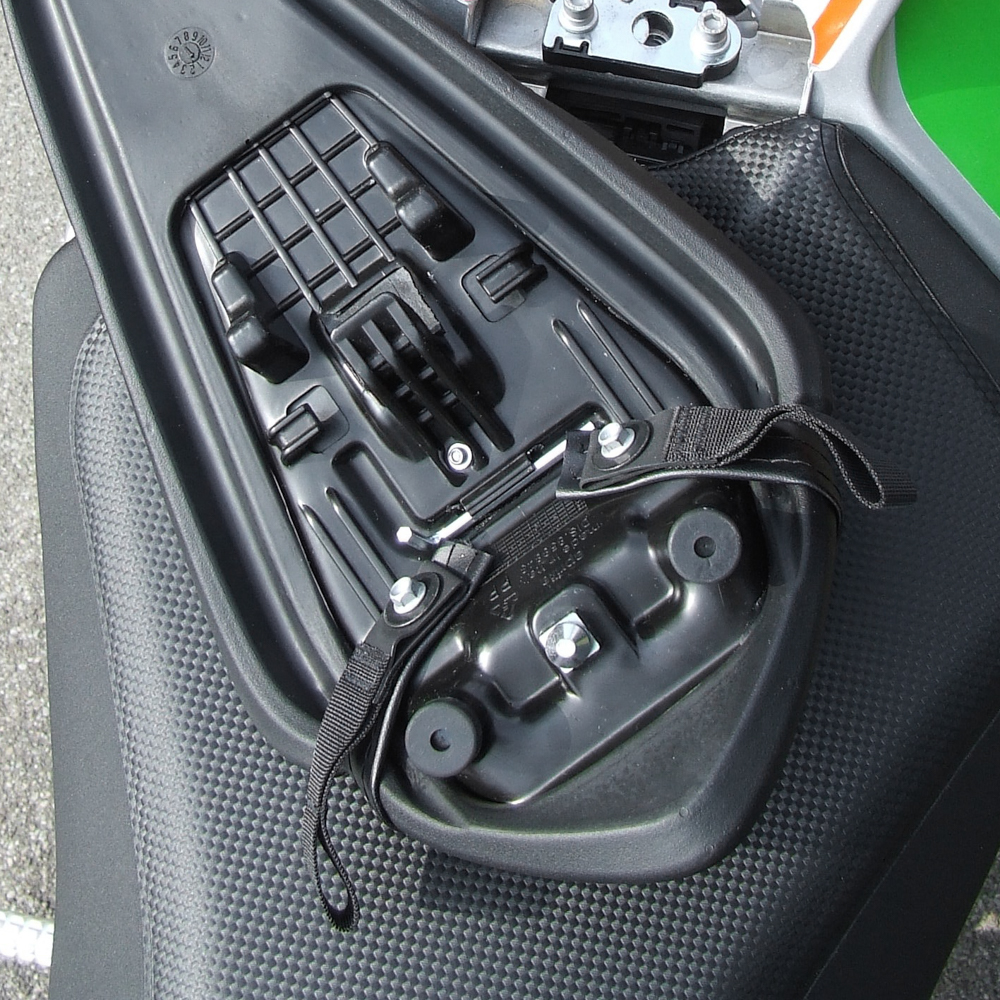

Remove the pillion seat, thread the T-shaped strap under the centre section and fasten it with the Velcro fastener. Slide the two M6 washers into the two screw loops. Use the existing M6 screws of the seat belt and the additional two washers to secure the position as shown.
NOTE (!)
We recommend applying protective tape to the two rear slats to protect the paintwork
Suitable for the following vehicles:
- APRILIA RSV4 RF (EURO 4) (RSV4RF/17)
- APRILIA RSV4 RR (EURO 4) (KE)
- APRILIA RSV4 RR (RSV4RR/15)
- APRILIA TUONO V4 1100 FACTORY (EURO 4) (TUOV4FA/17)
- APRILIA TUONO V4 1100 FACTORY (TUOV4FA/19)
- APRILIA TUONO V4 1100 RR /FACTORY (TUONOV4/15)
